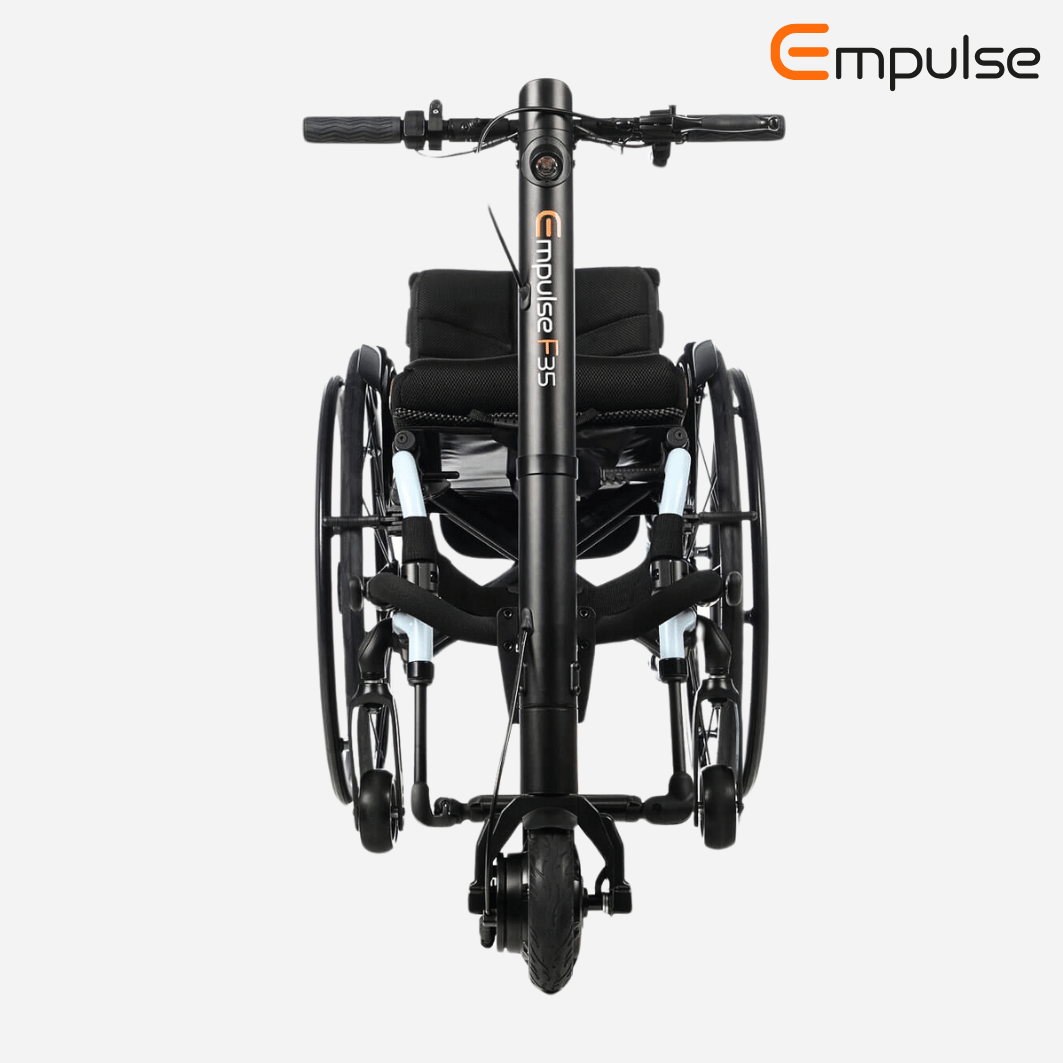

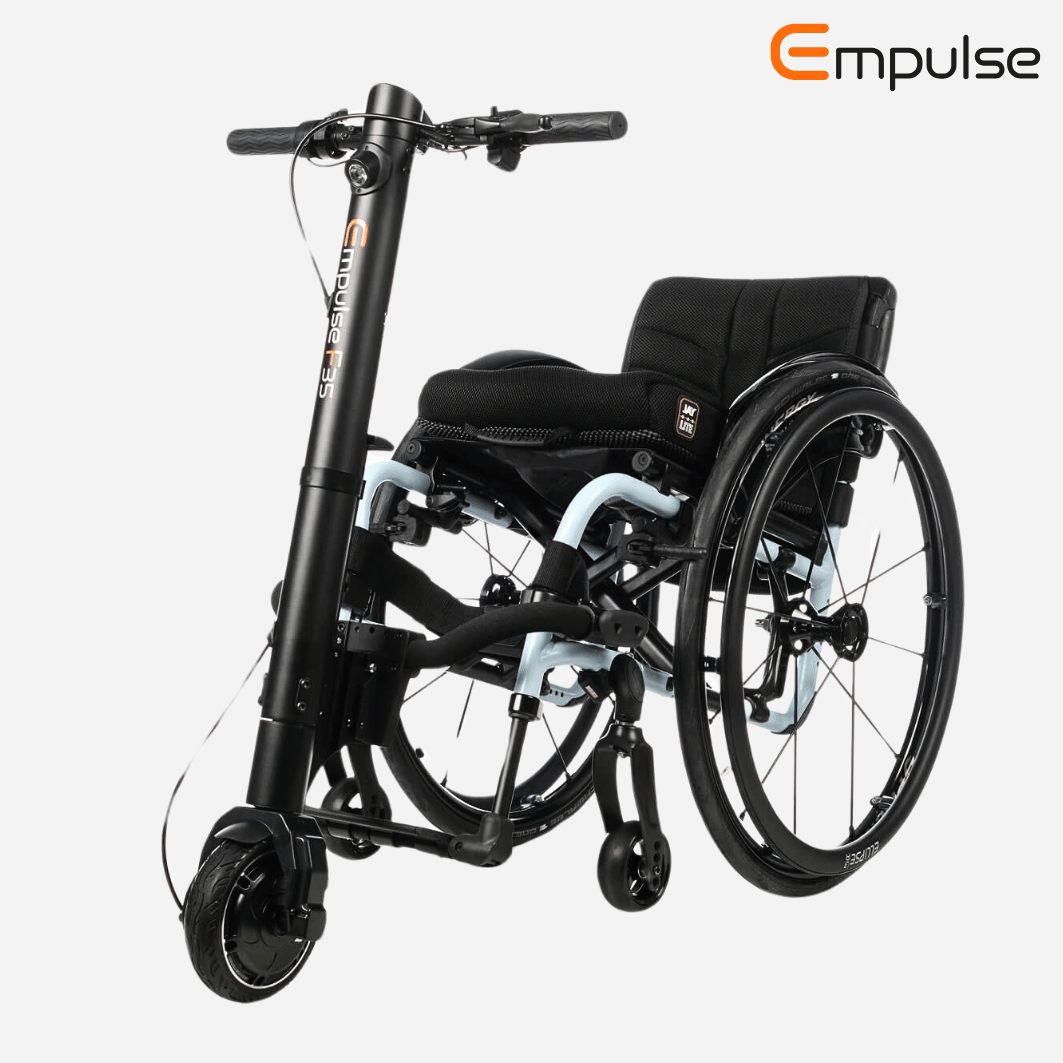

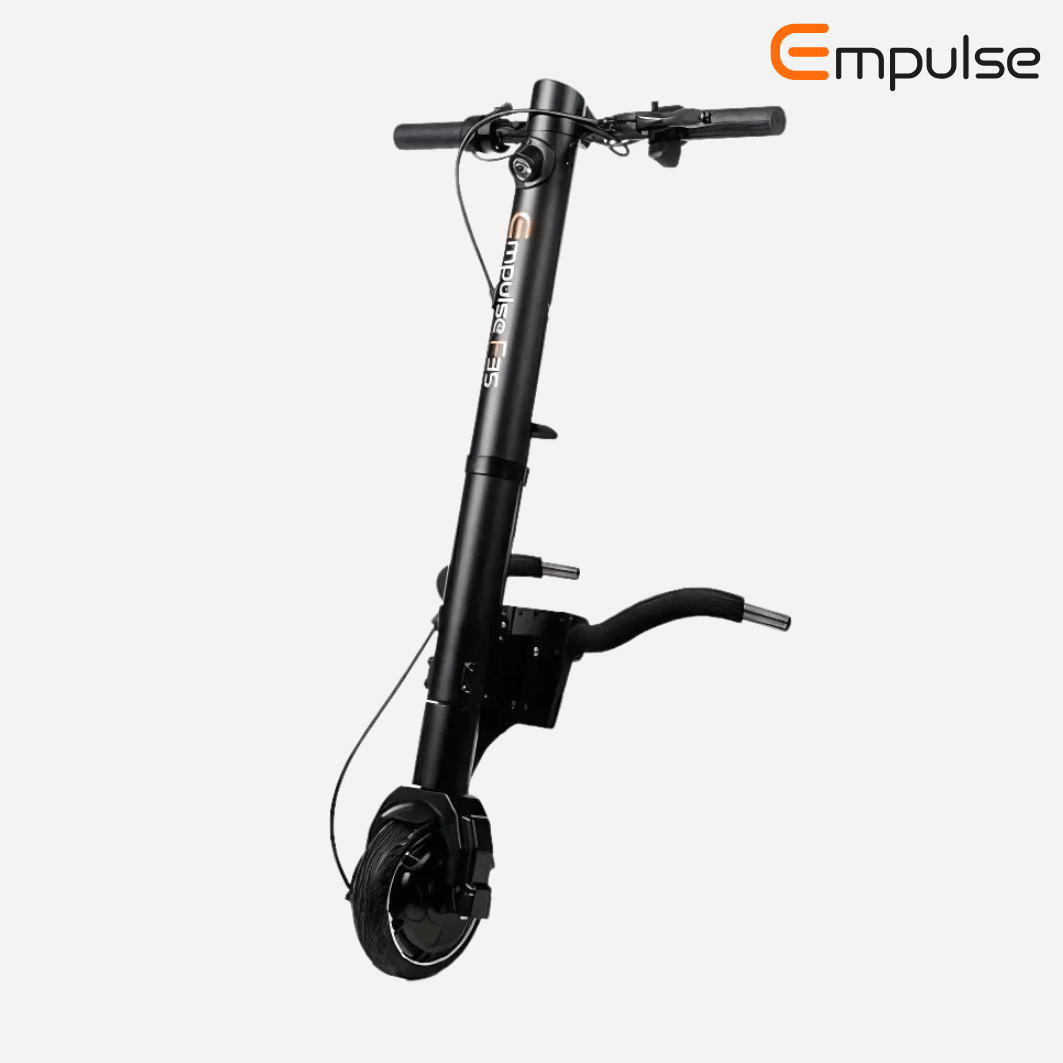

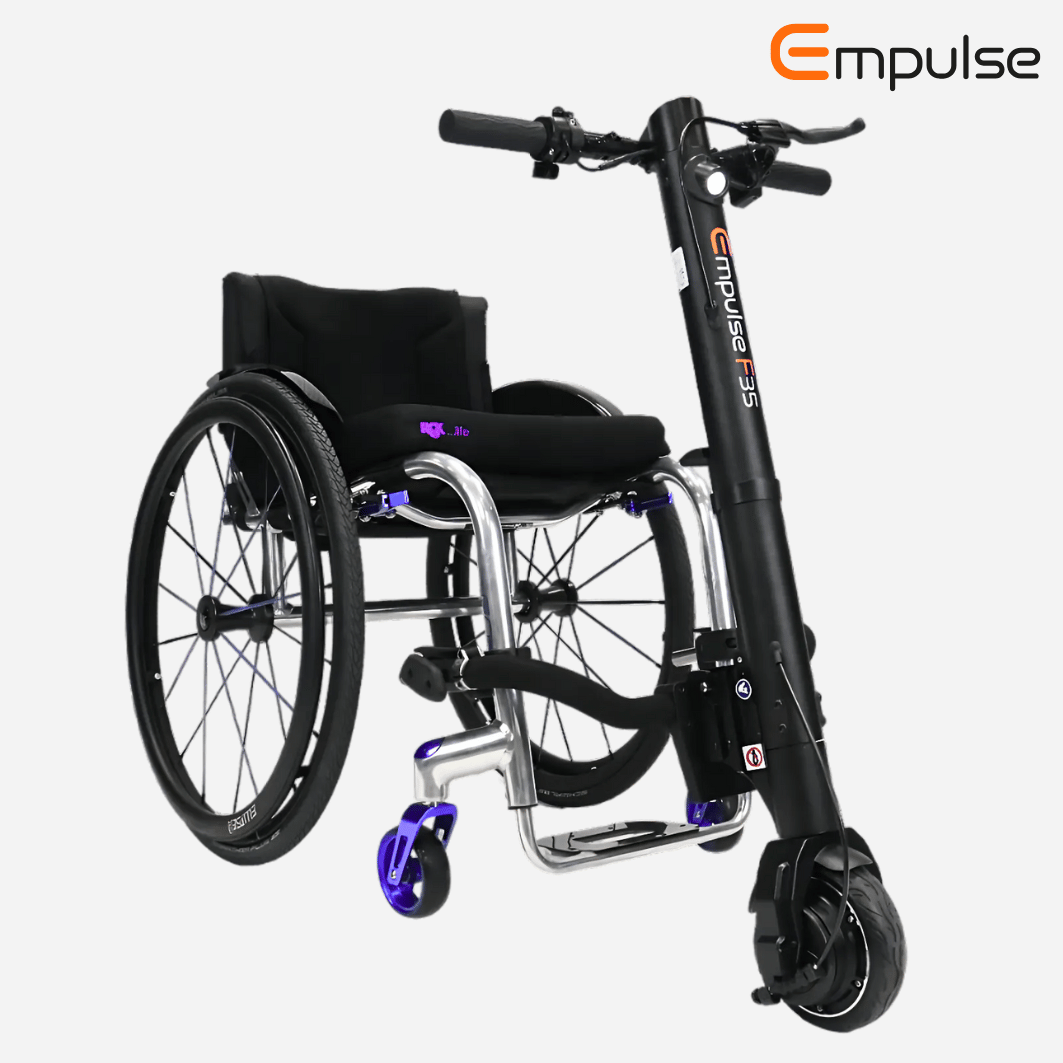

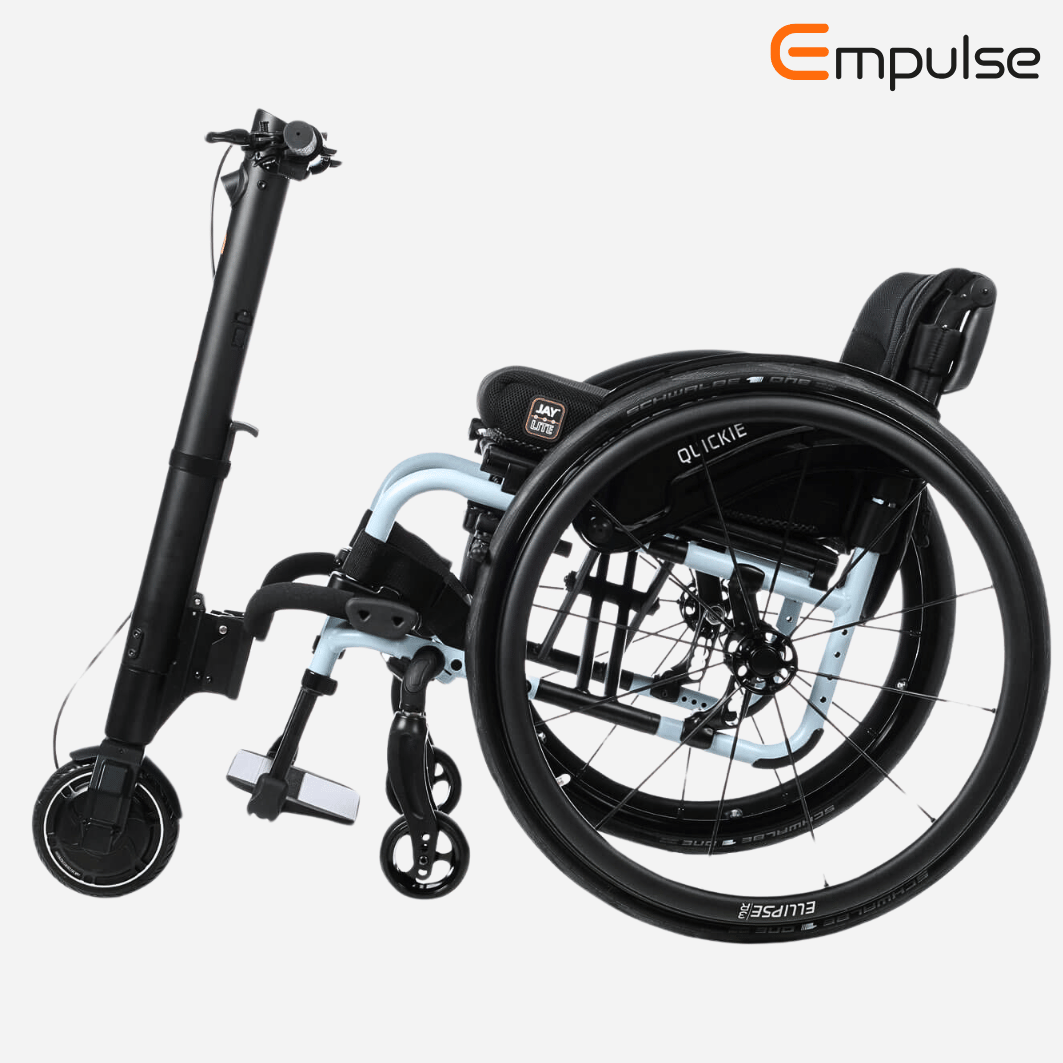

Empluse F35 Power Assist

The Empulse F35 is your go-to portable power assist device, designed to make every push easier and every outing smoother. Whether you're running errands downtown or navigating airports on a trip, the F35 adds powered mobility without adding bulk. Weighing just 16.5 lbs and offering up to 9.3 MPH of speed, this ultra-compact pull device is made for life on the go.

Ideal for active wheelchair users who want lightweight portability, effortless docking, and air-travel-ready performance, the F35 is compact yet powerful—perfect for both everyday adventures and weekend getaways.

Key Features

• Ultra-lightweight at just 16.5 lbs including battery

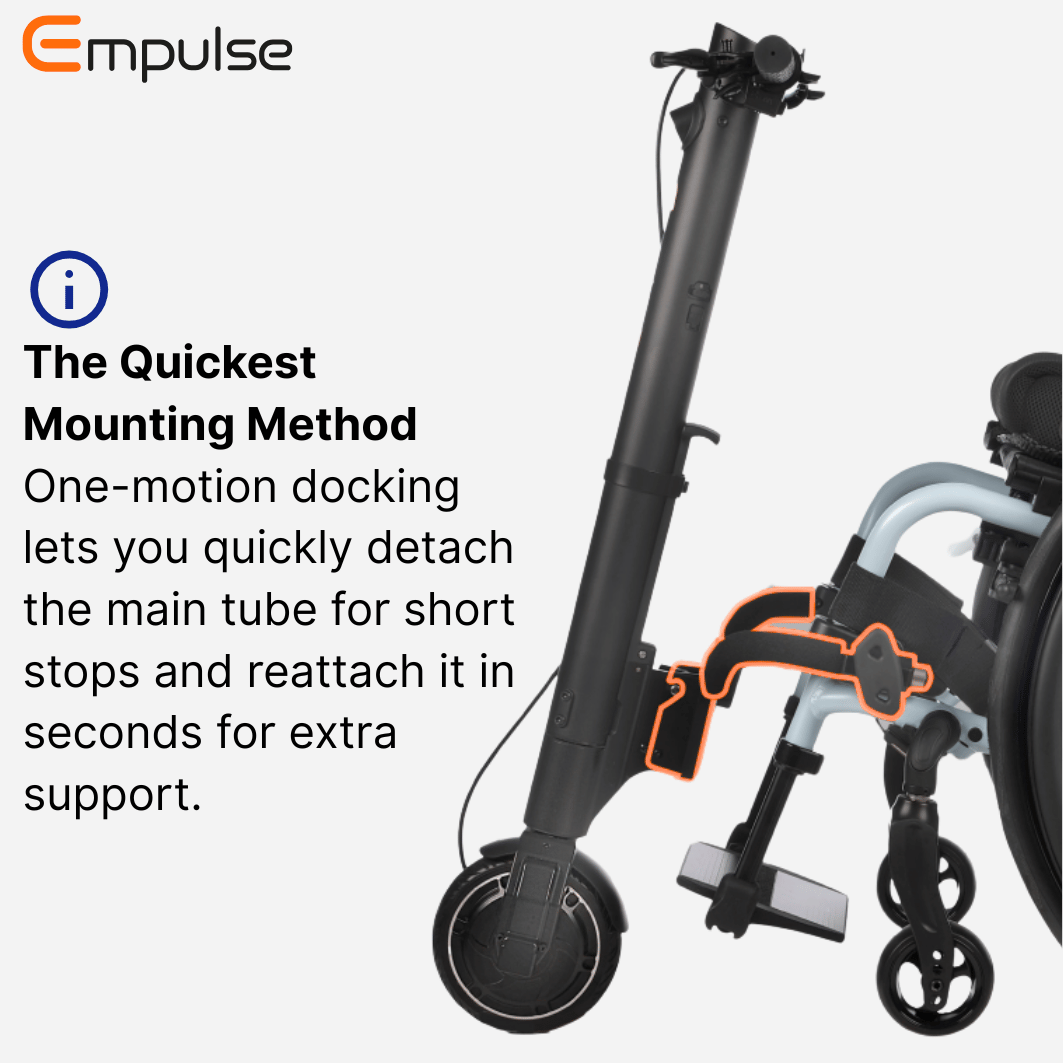

• One-motion docking system for fast attachment and removal
• Built-in battery and cable design for a sleek look
• Up to 9.3 MPH top speed with three selectable speed modes
• Up to 9 miles per charge for dependable range
• 250W motor handles slopes up to 6° with up to 242 lbs of user weight
• Three acceleration modes: Slow, Standard, and Fast

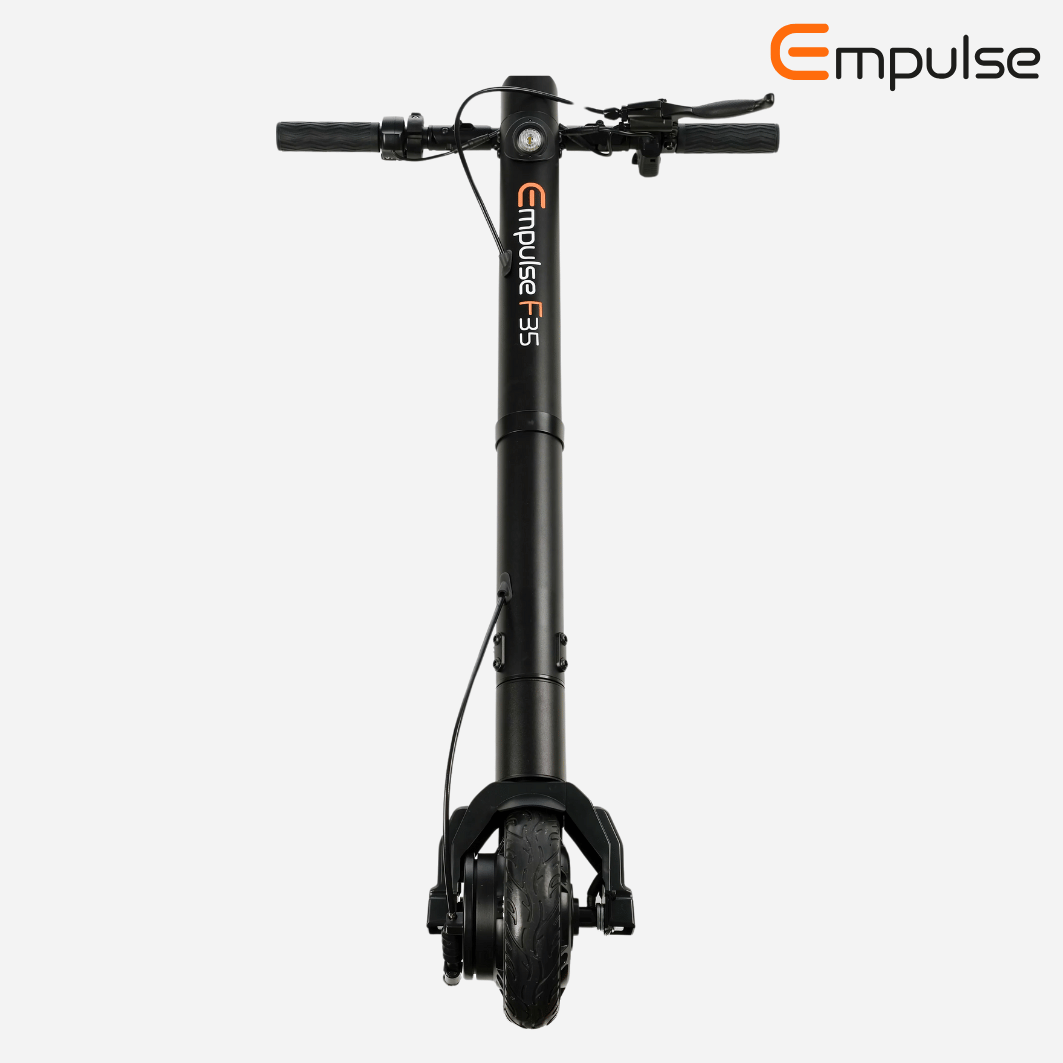

• Folds down small with flush handles for storage or transport
• Compatible with fixed and folding wheelchairs 10”–19” wide
• Approved for air travel with IATA-compliant lithium-ion battery

Ideal For

• Wheelchair users who want less effort while pushing
• Travelers looking for a power assist approved for flights
• Users with shoulder pain or limited upper body strength
• Everyday mobility in urban or suburban environments

Installation and Docking Guide

Initial Setup

1. Attach the subframe mount brackets to your wheelchair. These mounts stay in place throughout the day.
2. Adjust the height to fit between 10"–14.5", depending on your chair’s frame.
3. Ensure the frame width is within the 10"–19" range.

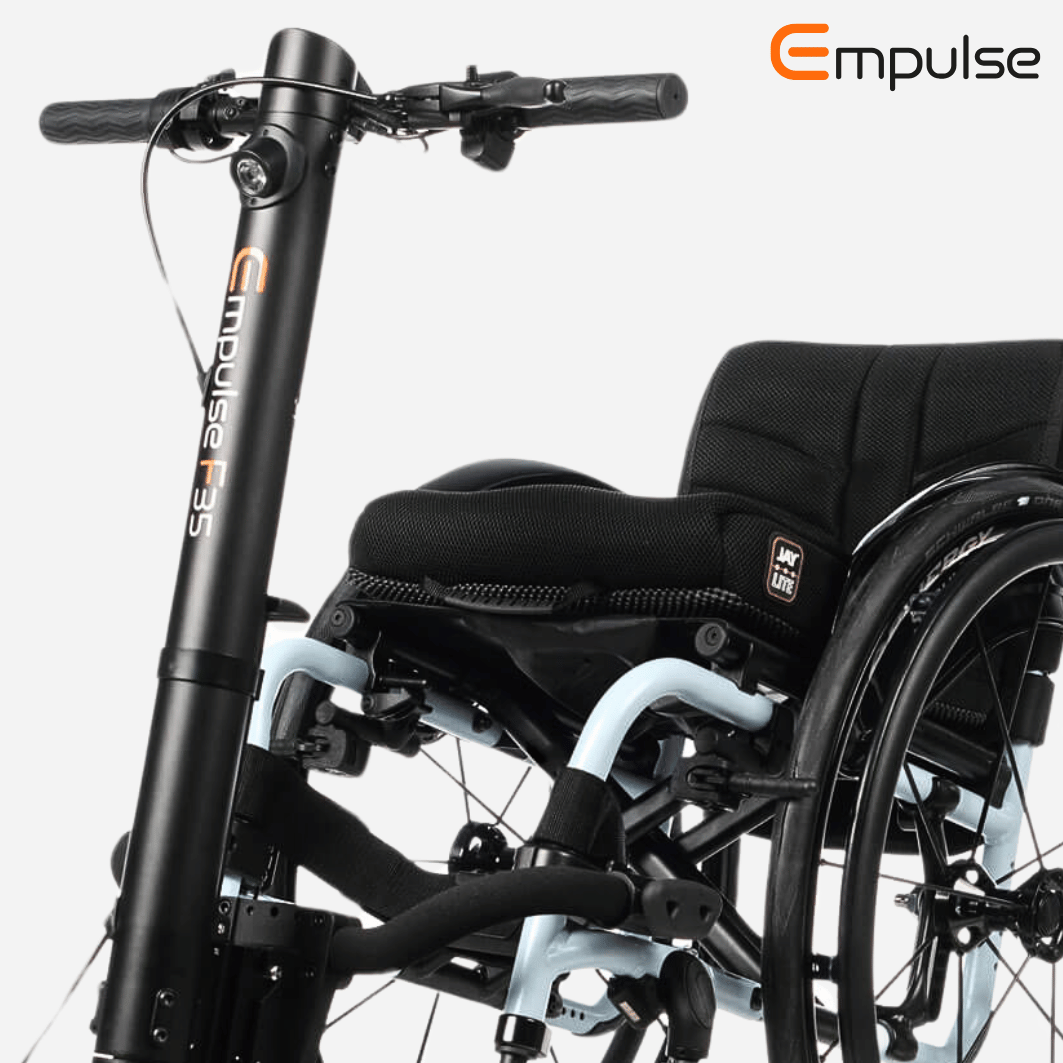

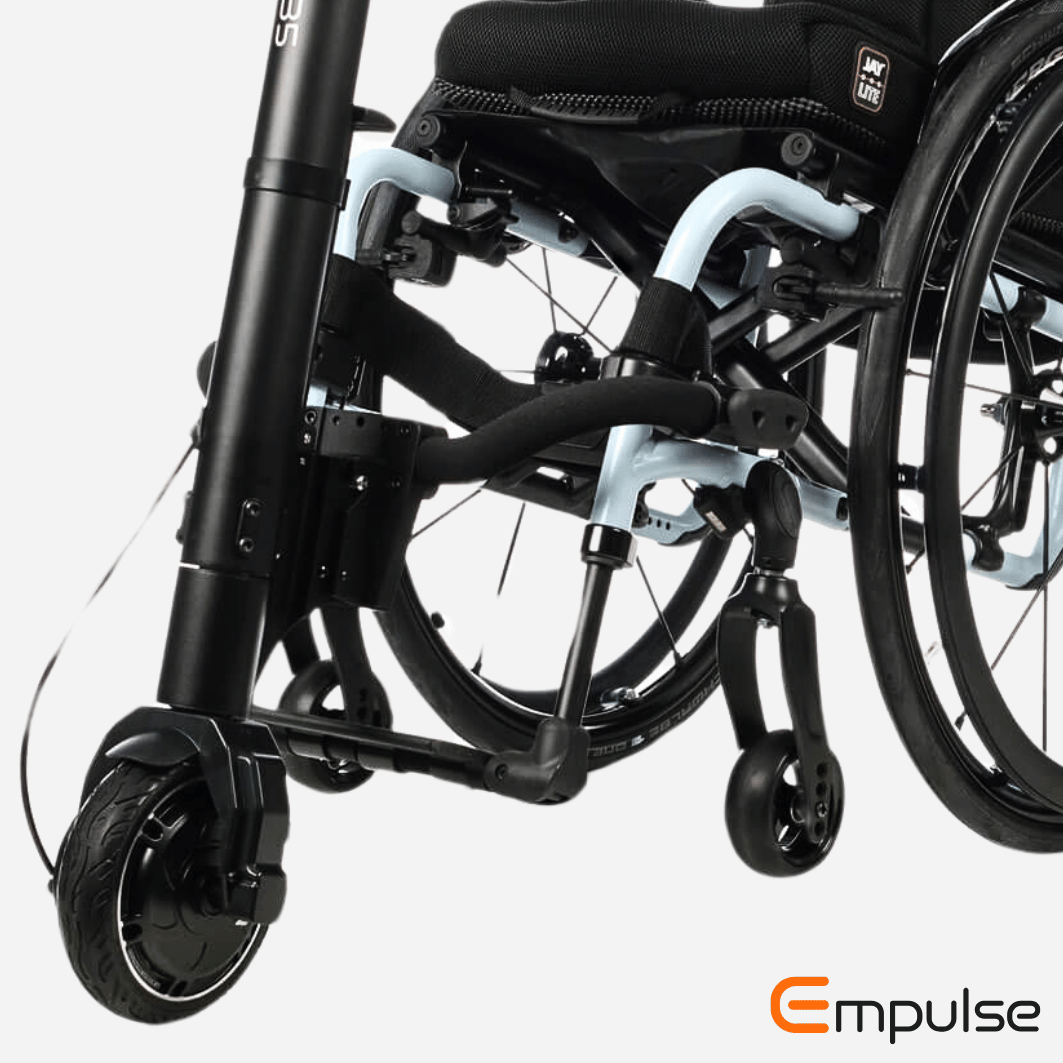

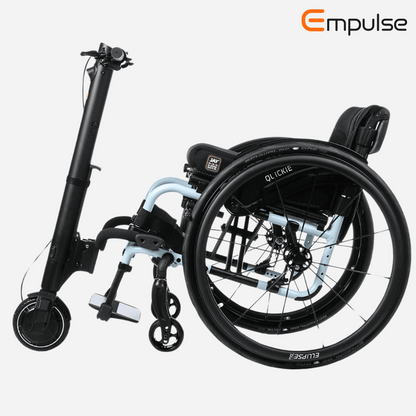

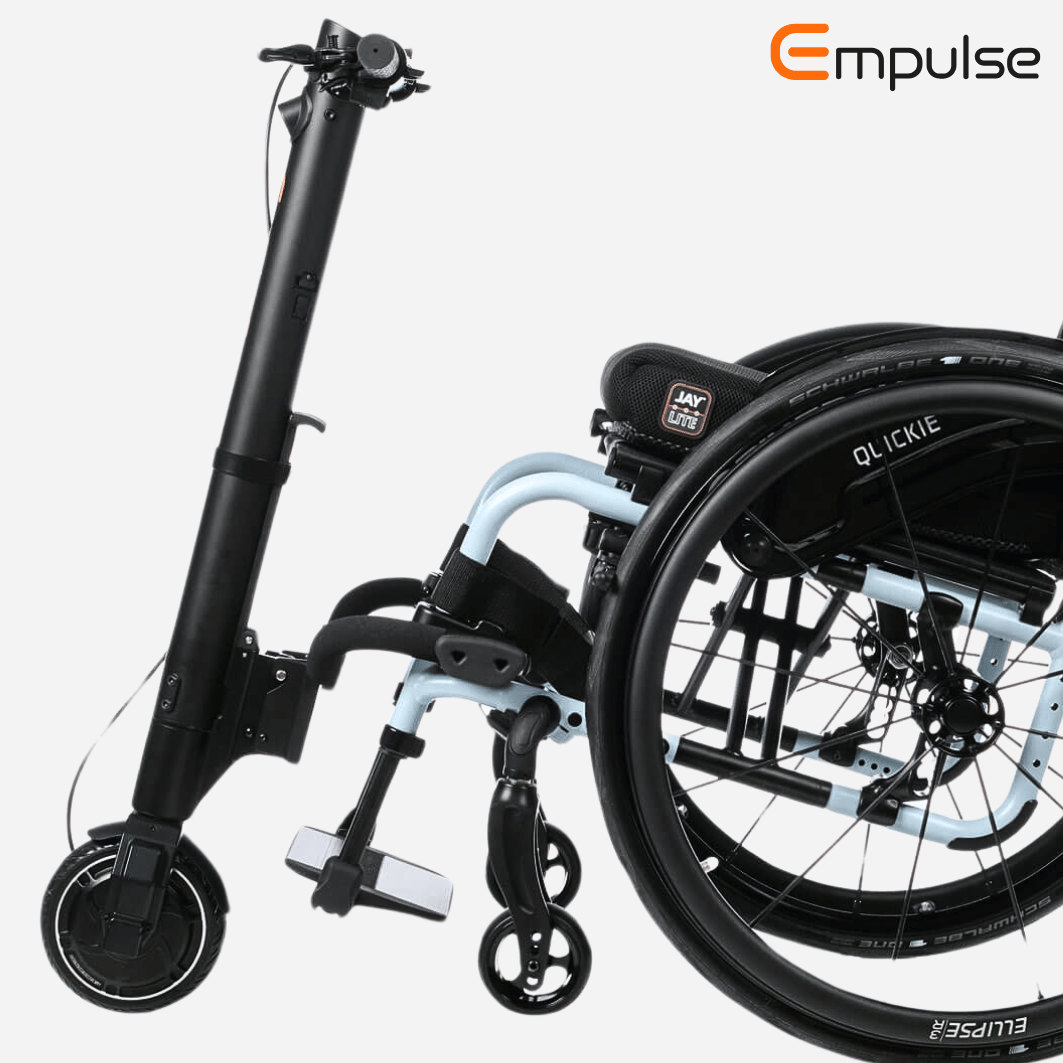

Docking the F35

1. Align the F35's docking post with the subframe’s tube bracket.
2. Push forward until it clicks securely into place.
3. Confirm that the power connection is active.

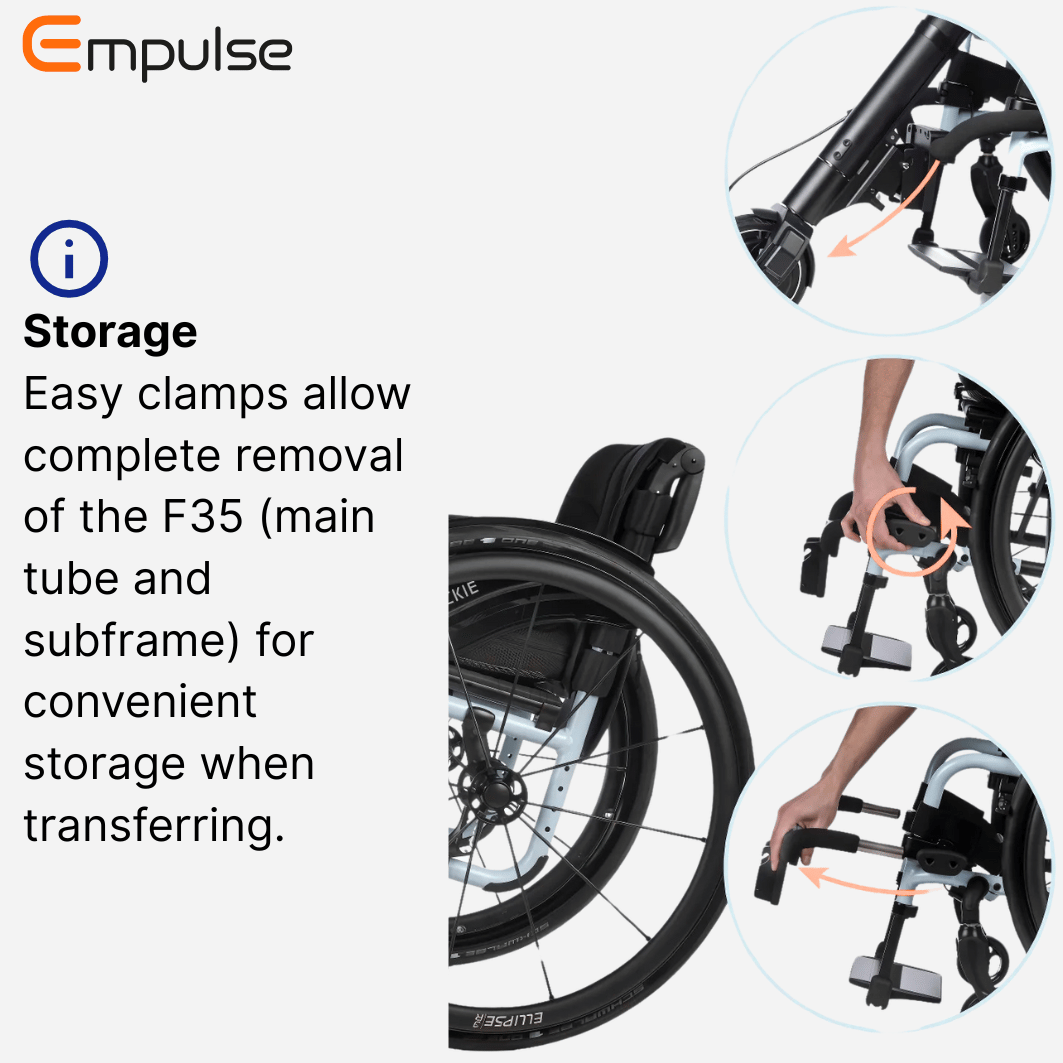

Undocking the F35

1. Pull the tube latch release located on the back of the F35.
2. Slide the unit backward and lift to remove.
3. The subframe can remain on the wheelchair for convenience.

Charging

1. Plug the included charger into the port integrated into the F35’s frame.
2. LED indicators will show when charging is complete.
3. Do not overcharge or expose to extreme heat while charging.
