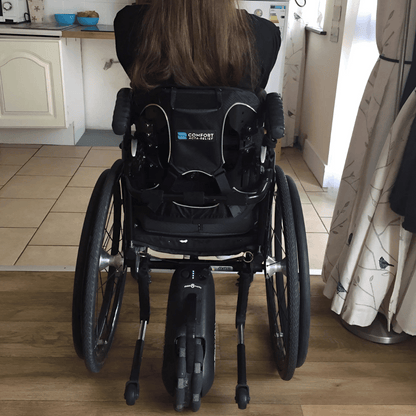

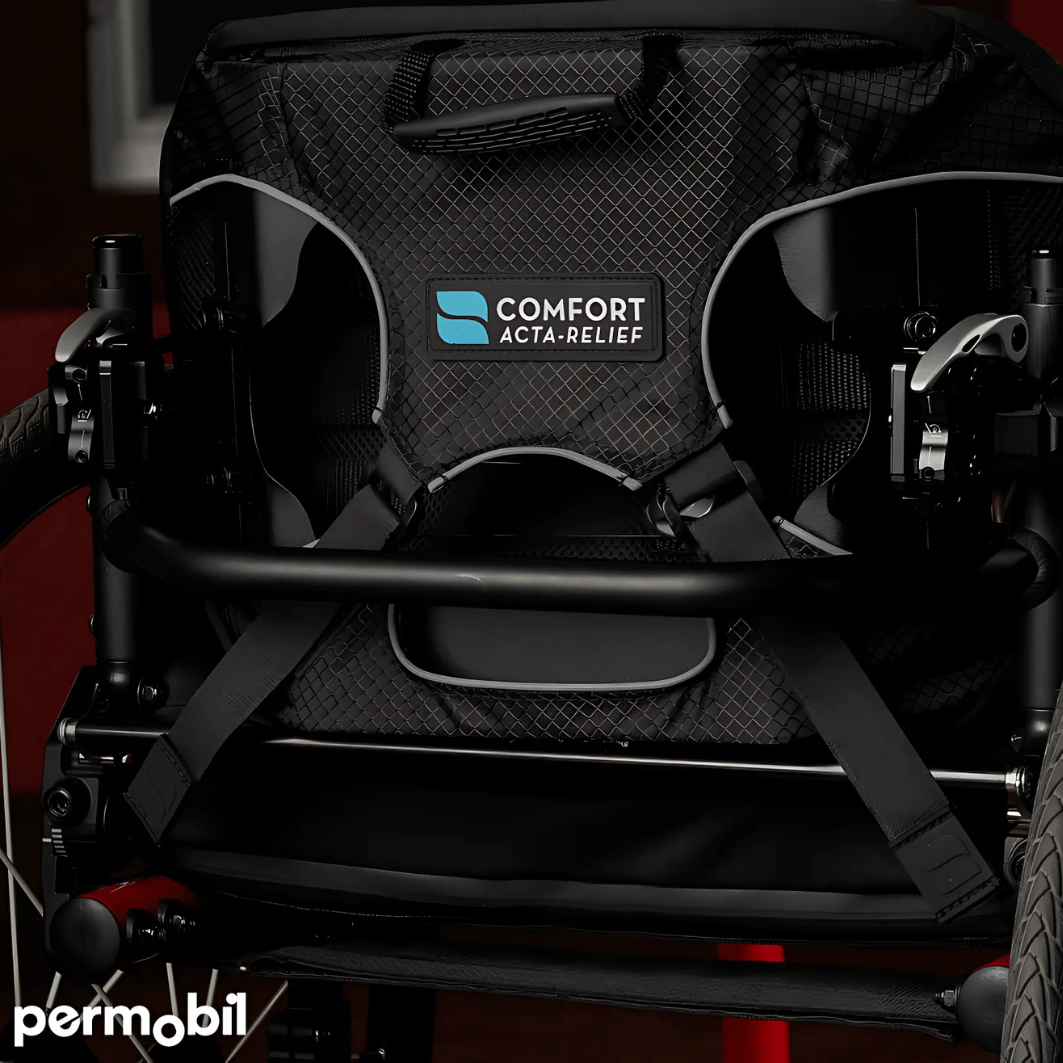

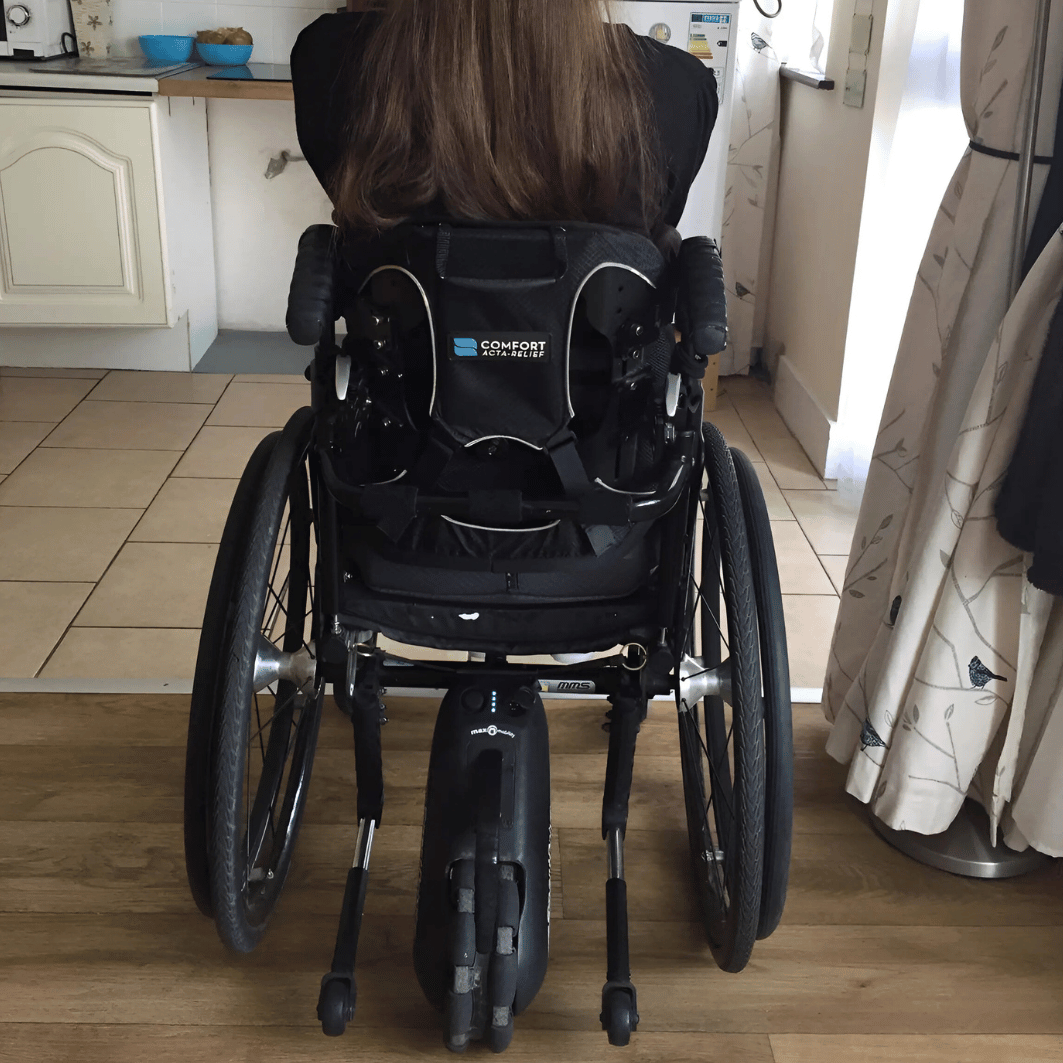

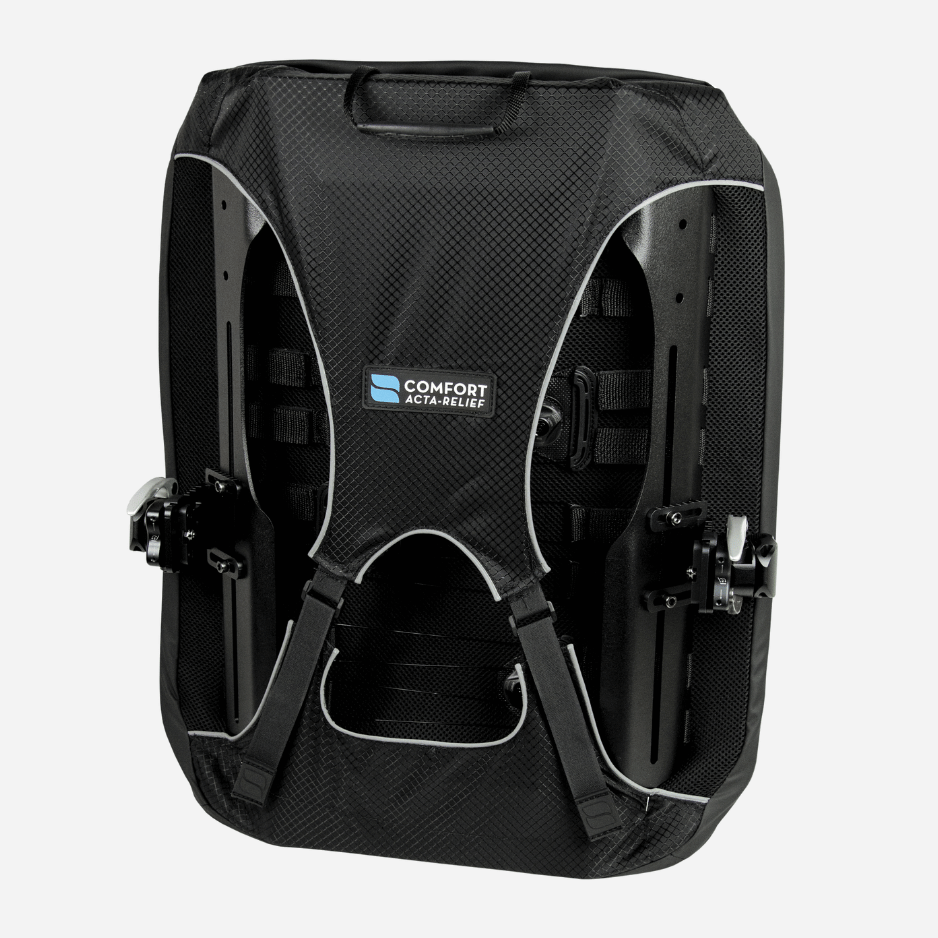

Comfort Acta-Relief Back

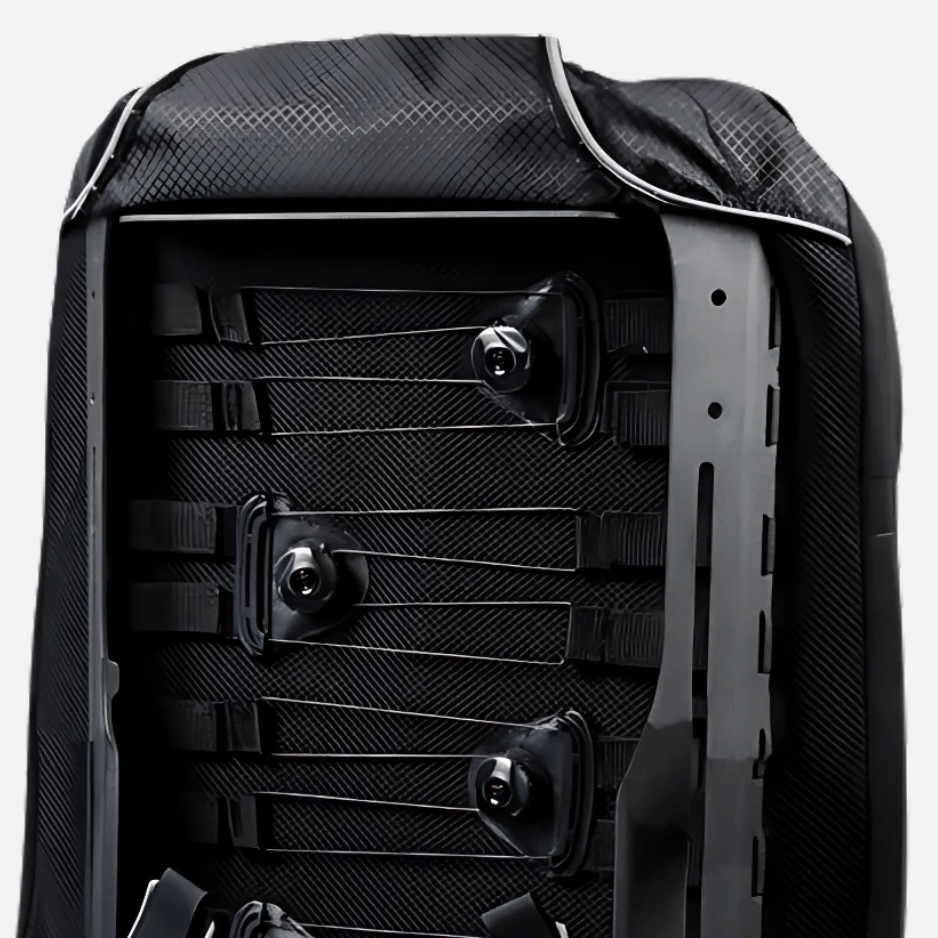

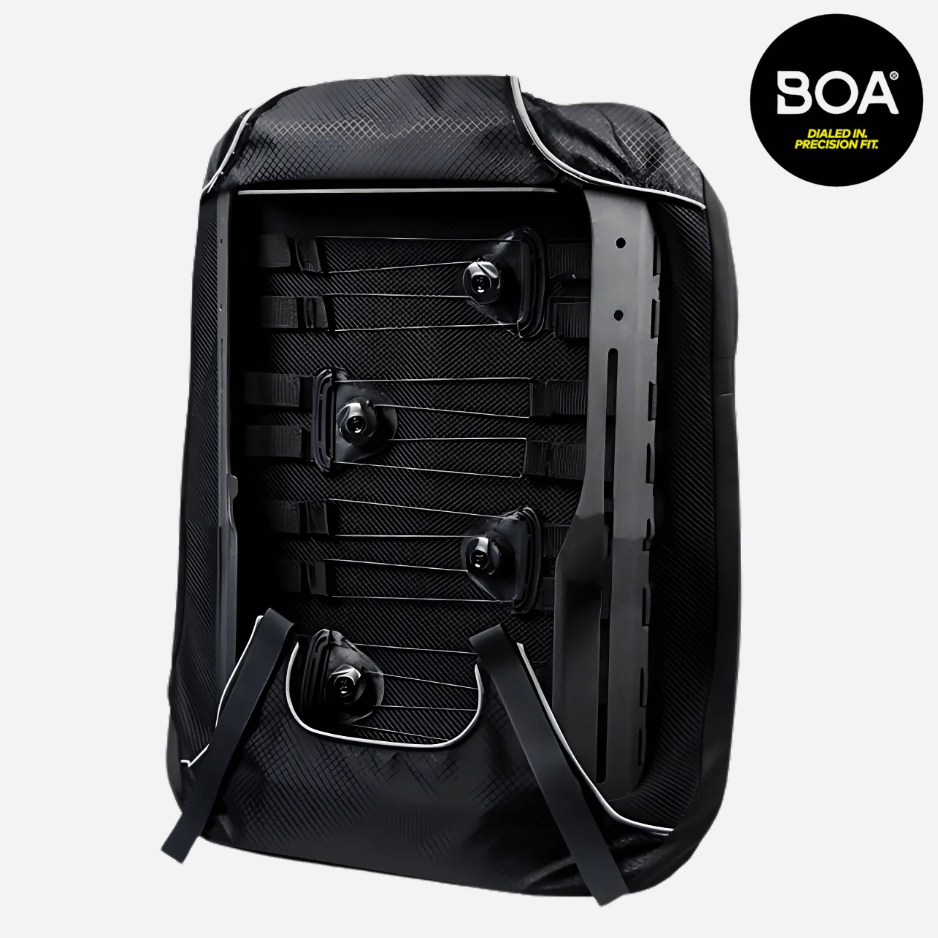

The ACTA-Relief back support features the revolutionary, award-winning BOA® Fit System consisting of three integral parts: a micro-adjustable dial, super-strong lightweight laces, and low friction lace guides. BOA is a dial-based performance fit system designed to effortlessly adjust, bringing comfort and support to the lower and upper thoracic regions.

• BOA allows the user to dial in to a precision fit

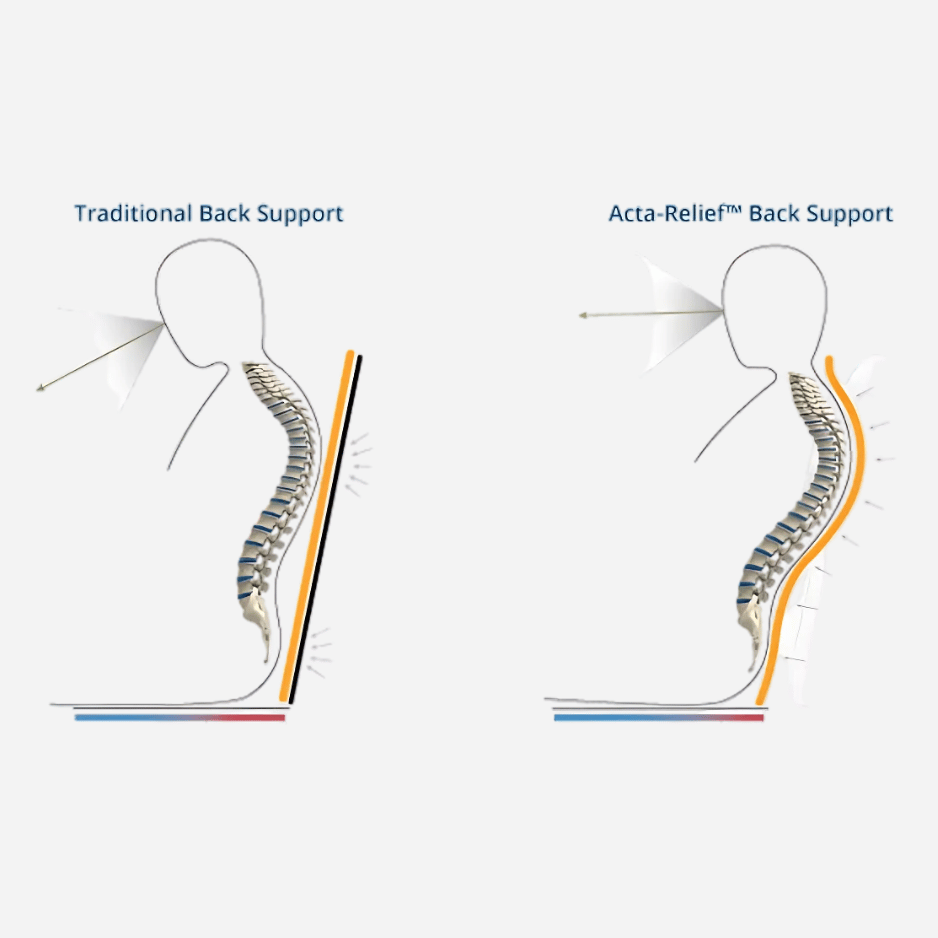

• Open back frame design gives the ability to offload the pressure typically seen on spinal deformities

Key features

• Features flexible, adjustable straps that allow this product to offset the center of pressure and better remove pressure points from the spine.
• This allows for a more aggressive molding to each individual patient's natural anatomy to support many seating positions ranging from upright seating to a severely rotated back.
• Equipped with an oversized aluminum shell cut-out to allow deeper immersion into the back.
• Thick Visco surface layer adds extra comfort and support by contouring to the user's body.
• Patent Pending

BOA Advantage

1. MICRO-ADJUSTABLE: Each click of the Boa reel offers one millimeter of precision fit adjustment.

2. SECURE: Once the Boa reel is locked into place, it stays that way.

3. CUSTOMIZABLE FIT: Boa delivers smooth, even adjustment with no pressure points for maximum comfort.

4. CONVENIENT: The Boa closure system offers an adjustment solution free of messy straps, ratchets, and fasteners.

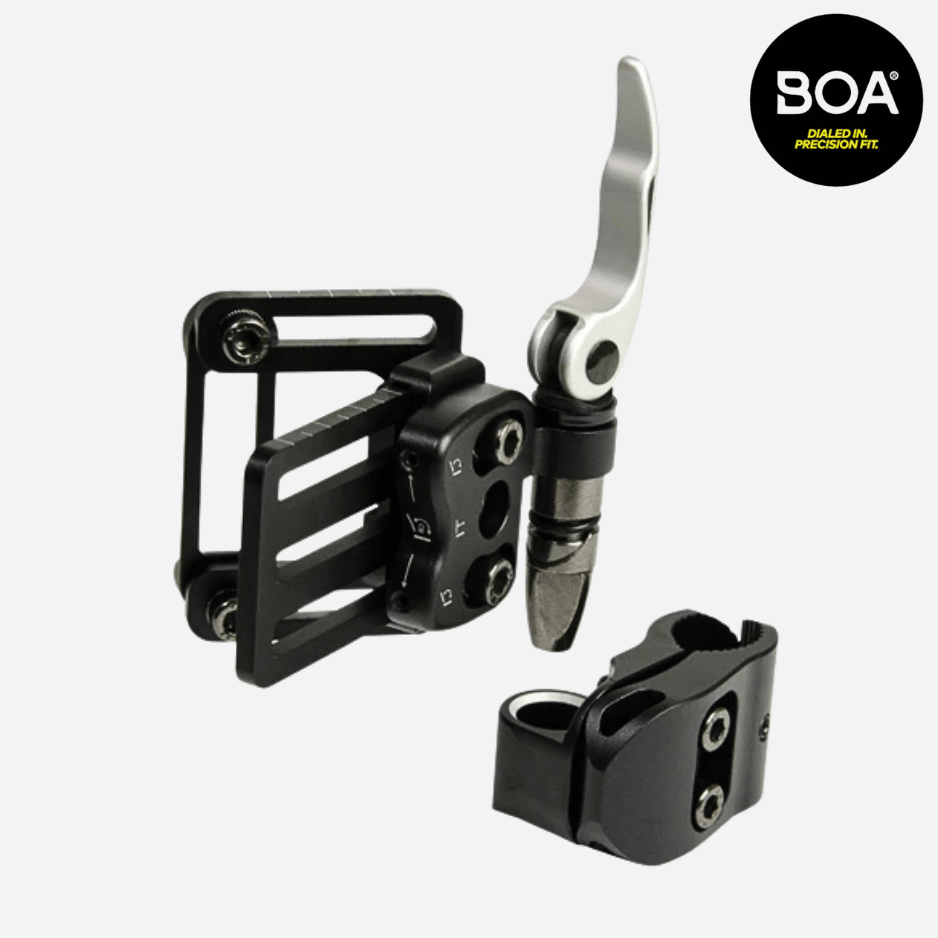

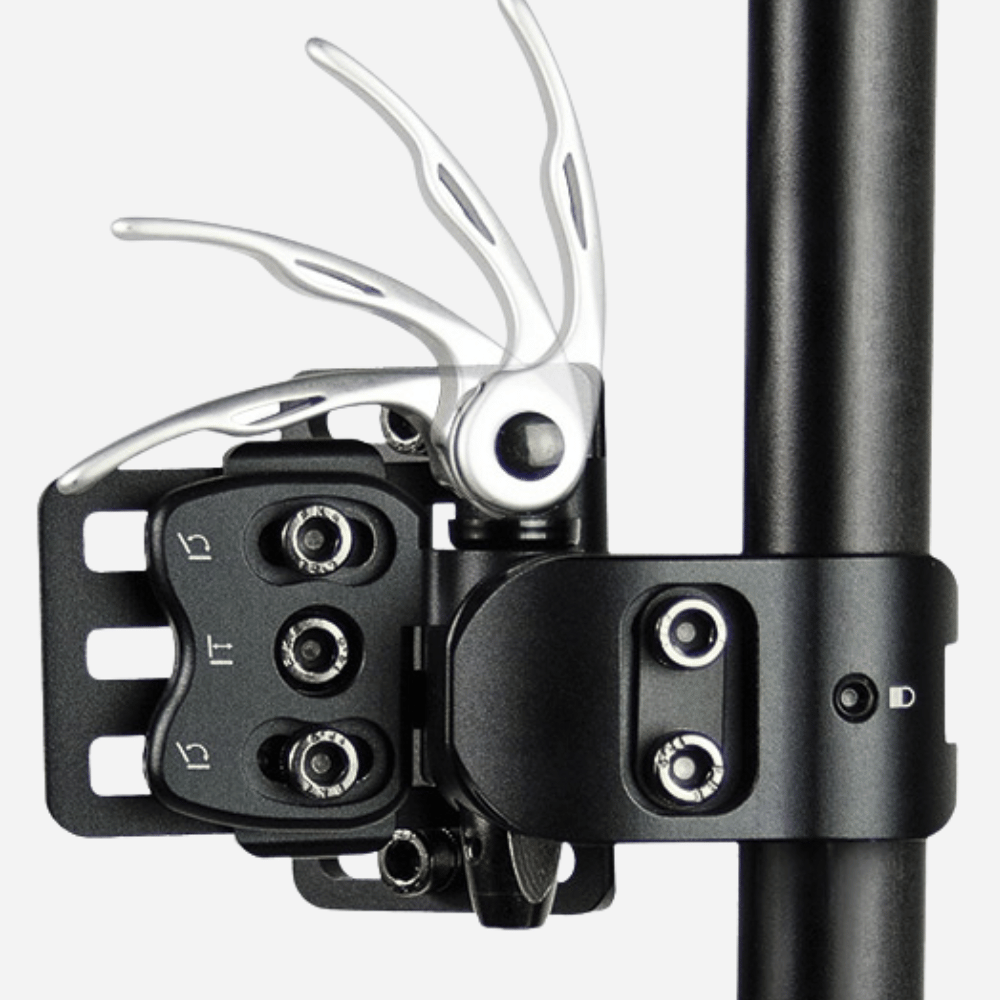

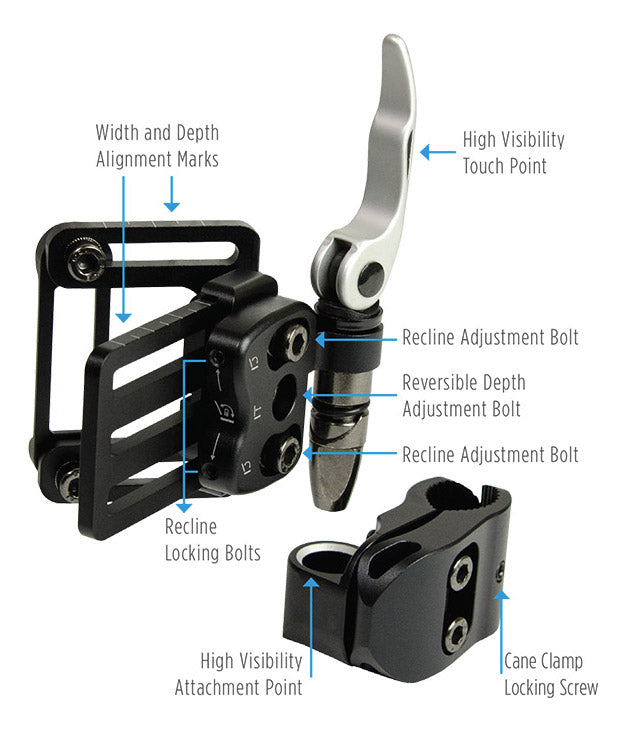

COMPASS 4 HARDWARE

• Fully adjustable for height, depth, and angle of recline.
• Requires only 1.5" of space on each cane for mounting purposes.
• All adjustments can be made while the user is seated in the wheelchair, eliminating the need for multiple transfers during the fitting process.
• Quick-release feature allows backrest to be removed vertically within seconds.
• Hardware may be installed within minutes and fits 3/4", 7/8", and 1" tubing.
• Positive locking feature for angle rotation.
• Note: hardware appearance my vary depending on back support size and style.

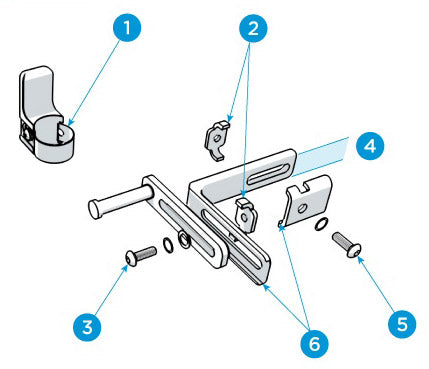

4 POINT HARDWARE

See image 7.

1. Cane mount fits 5 different cane diameters. Shorter strap that comes standard fits 3/4”, 7/8” & 1” while longer strap provided (not pictured) fits 1 1/8” & 1 1/4”.
2. Slot lock nut system prevents unwanted rotation.
3. Single design allows for easy adjustment with minimal fasteners.
4. Single slot design uses very little space, allowing other hardware to mount.
5. Minimal fasteners, but strong design.
6. Track systems prevent rotation, allowing features to nest together for additional stability.
7. Combination of aluminum and steel for ultralight hardware.
